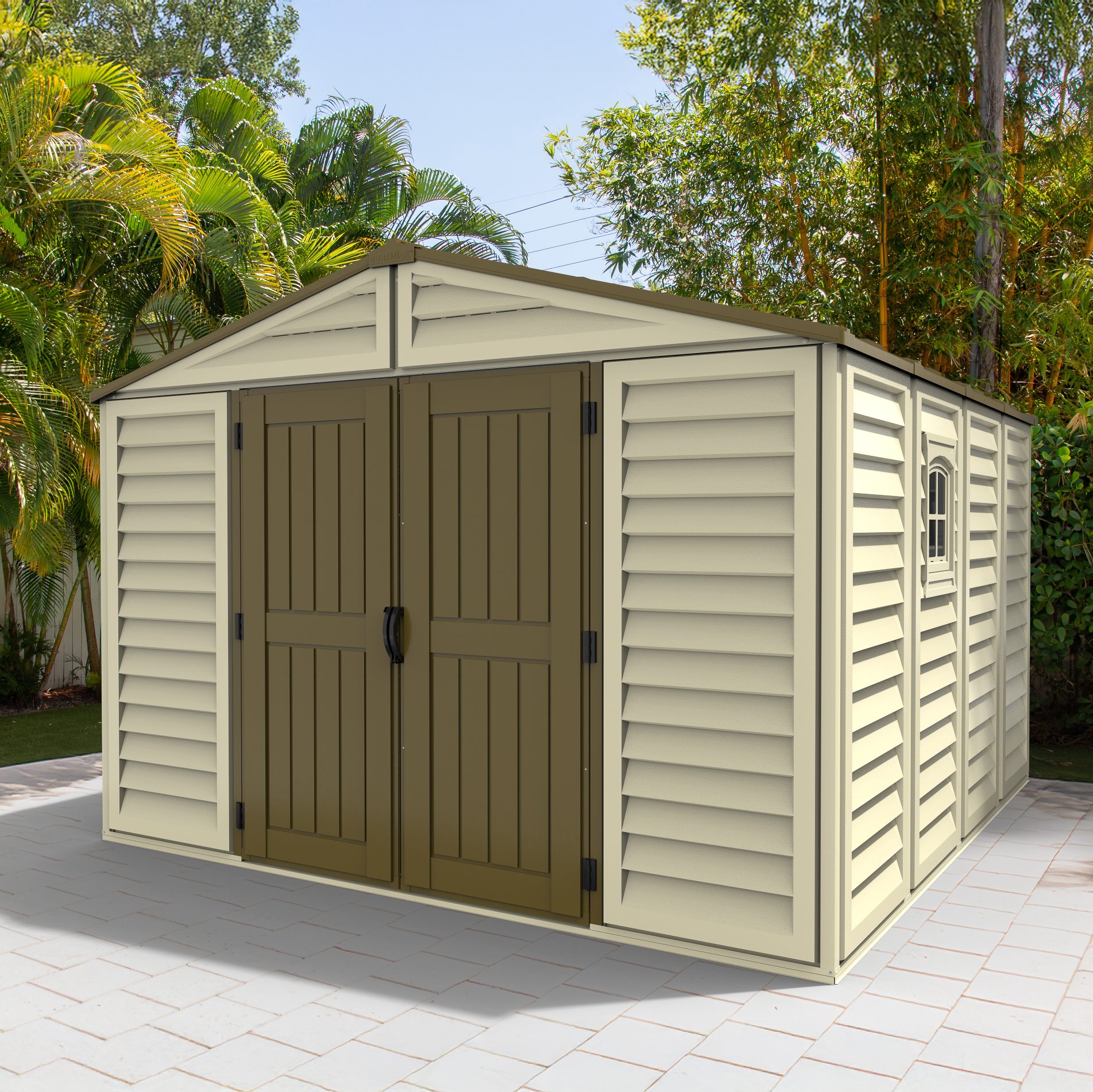

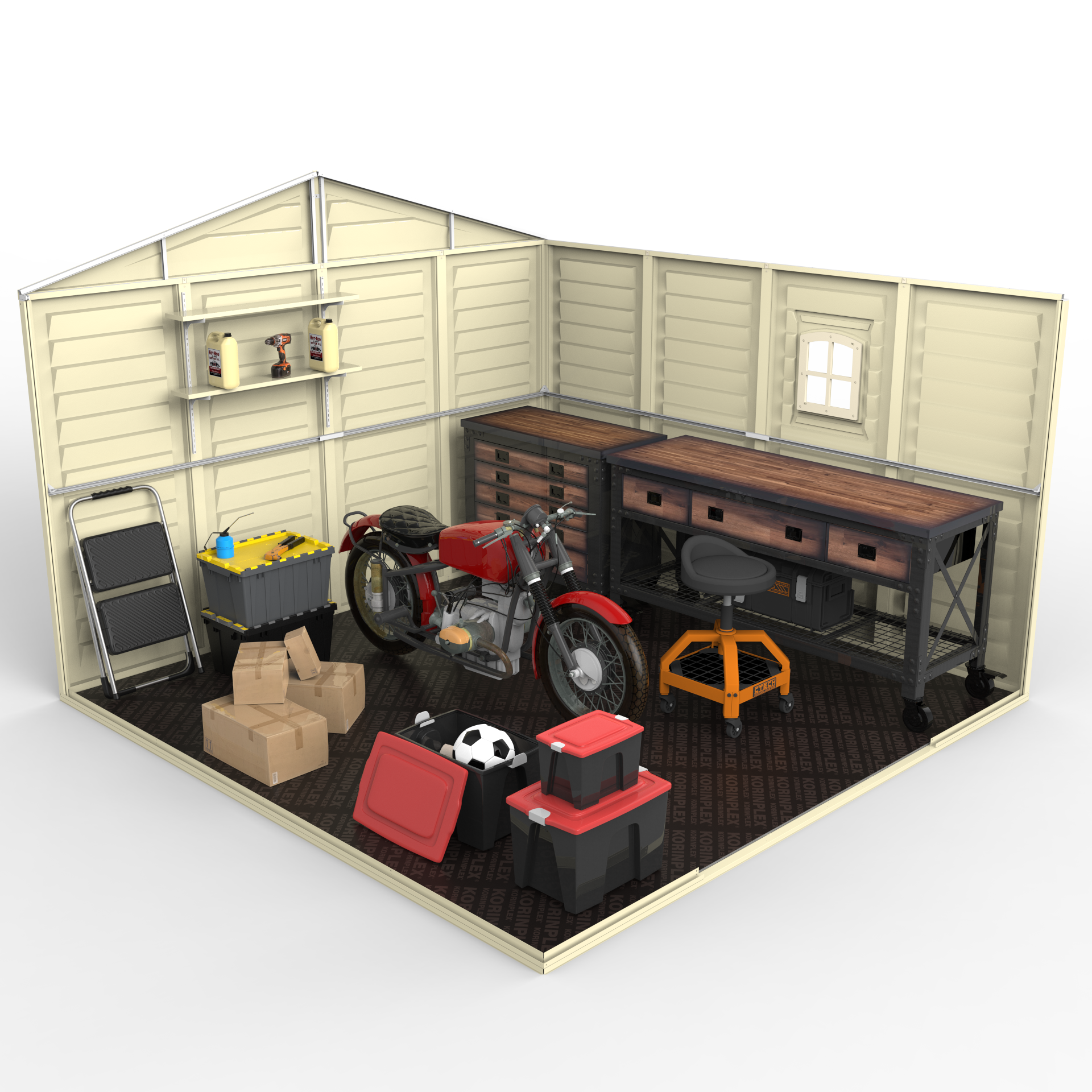

This 10.5 ft. x 10.5 ft. is the mid-size shed in our Plus Signature line. 2 tone colors beige/brown adds elegance to any outdoor setting. This tall walk-in shed features tall and wide double doors. The wall columns are reinforced with a solid metal structure that gives the shed strength as well as allows you to mount shelves or hang garden tools. If you have the room this is the ideal storage for you. With large cubic feet, there is no better valued vinyl storage shed in the market place today.

• Specs and Dimensions

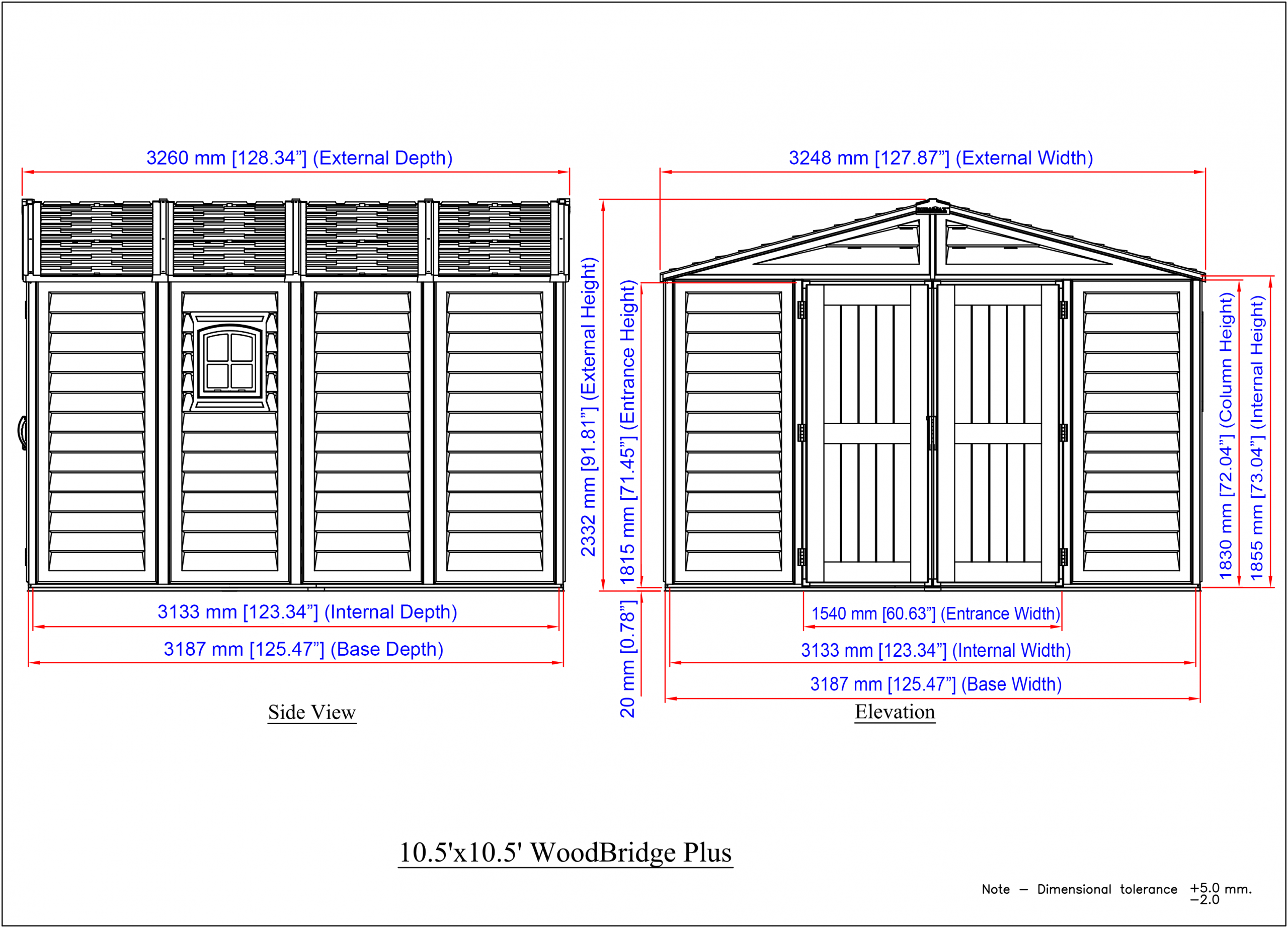

• Diagrams
• 3D/AR

Specs and Dimensions



WoodBrigde Plus 10.5'x10.5' SPECIFICATIONS Color Exterior Dimensions inches Interior Dimensions inches Door Dimensions inches Approx. Box Weight lbs. Item / Model No. Product Description Base Length/ Depth Width Height Length/ Depth Width Height Cu. Ft. of Space Width Height 40224-1 10.5'x10.5' WoodBridge Plus Ivory 128.35 127.87 91.81 123.35 123.35 73.03 643.01 60.63 71.46 368



Schematics and Parts

Click to download

• installation
• parts re-order
• CUSTOMER SUPPORT

Installation Help

INSTALLATION MANUAL

INSTALLATION VIDEO

WoodBridge Plus 10.5×10.5

$1.00 – $35.00

There’s just no better valued vinyl storage shed in the market place today!

NO.	PART NAME	PART NO.	PRICE
Blind Plugs quantity	1	Blind Plugs	BP	$1.00 88 in stock
Center band plastic joint quantity	2	Center band plastic joint	CBC	$1.00 90 in stock
Roof Fascia Cap quantity	3	Roof Fascia Cap	EC	$1.00 74 in stock
End Plug Square quantity	4	End Plug Square	EPS	$1.00 85 in stock
Center bend corner fitting quantity	5	Center bend corner fitting	FCB	$1.00 80 in stock
Fitting for Top corner column quantity	6	Fitting for Top corner column	FCC	$1.00 35 in stock
Door Column Top Fitting Left quantity	7	Door Column Top Fitting Left	FDCL	$1.00 84 in stock
Door Column Top Fitting Right quantity	8	Door Column Top Fitting Right	FDCR	$1.00 80 in stock
Fitting for Top Center column quantity	9	Fitting for Top Center column	FMC	$1.00
Plastic Washer (Includes 28 pcs) quantity	10	Plastic Washer (Includes 28 pcs)	PW	$1.00 54 in stock
Roof Corner joint fitting quantity	11	Roof Corner joint fitting	RJ	$1.00 60 in stock
Middle Jointing Support quantity	12	Middle Jointing Support	VJA01	$1.00 76 in stock
Door Handle Left quantity	13	Door Handle Left	DH_L	$2.00 79 in stock
Door Handle Right quantity	14	Door Handle Right	DH_R	$2.00 78 in stock
Left Hinges quantity	15	Left Hinges	LH_40224	$2.00 97 in stock
Right Hinges quantity	16	Right Hinges	RH_40224	$2.00 97 in stock
Bottom U Channel Front Right quantity	17	Bottom U Channel Front Right	VBA01	$2.00 96 in stock
Bottom U Channel Back quantity	18	Bottom U Channel Back	VBA04	$2.00 91 in stock
Bottom U Channel Back quantity	19	Bottom U Channel Back	VBA05	$2.00 90 in stock
Bottom U Channel Front Left quantity	20	Bottom U Channel Front Left	VBA06	$2.00 94 in stock
Center Band front quantity	21	Center Band front	VCA01	$2.00 93 in stock
Center Band Long quantity	22	Center Band Long	VCA03	$2.00 65 in stock
Foundation steel quantity	23	Foundation steel	VFA01	$2.00 99 in stock
Foundation steel quantity	24	Foundation steel	VFA02	$2.00 99 in stock
Foundation steel quantity	25	Foundation steel	VFA06	$2.00 95 in stock
Foundation steel quantity	26	Foundation steel	VFA10	$2.00 91 in stock
Foundation steel quantity	27	Foundation steel	VFA11	$2.00 98 in stock
Foundation steel quantity	28	Foundation steel	VFA12	$2.00 99 in stock
Foundation steel quantity	29	Foundation steel	VFA13	$2.00 100 in stock
Roof structure quantity	30	Roof structure	VRA01	$2.00 96 in stock
Roof structure quantity	31	Roof structure	VRA02	$2.00 98 in stock
Roof structure quantity	32	Roof structure	VRA03	$2.00 95 in stock
Roof structure quantity	33	Roof structure	VRA04	$2.00 96 in stock
Door Stopper quantity	34	Door Stopper	VRA05	$2.00 99 in stock
Roof structure quantity	35	Roof structure	VRA06	$2.00 93 in stock
Roof structure quantity	36	Roof structure	VRA08	$2.00 92 in stock
Roof structure quantity	37	Roof structure	VRA09	$2.00 92 in stock
Roof structure quantity	38	Roof structure	VRA10	$2.00 95 in stock
Roof structure quantity	39	Roof structure	VRA11	$2.00 93 in stock
Roof structure quantity	40	Roof structure	VRA12	$2.00 91 in stock
Roof structure quantity	41	Roof structure	VRA13	$2.00 98 in stock
Roof structure quantity	42	Roof structure	VRA14	$2.00 96 in stock
Roof structure quantity	43	Roof structure	VRA15	$2.00 96 in stock
Roof structure quantity	44	Roof structure	VRA16	$2.00 85 in stock
Roof structure quantity	45	Roof structure	VRA17	$2.00 87 in stock
Roof structure quantity	46	Roof structure	VRA18	$2.00 77 in stock
Roof structure quantity	47	Roof structure	VRA19	$2.00 96 in stock
Roof structure quantity	48	Roof structure	VRA21	$2.00 99 in stock
Roof structure quantity	49	Roof structure	VRA22	$2.00 97 in stock
Roof structure quantity	50	Roof structure	VRA23	$2.00 99 in stock
Roof structure quantity	51	Roof structure	VRA24	$2.00 99 in stock
Door column right quantity	52	Door column right	CLA1_40224	$5.00 99 in stock
Corner Column quantity	53	Corner Column	CLA2	$5.00 99 in stock
Center Column quantity	54	Center Column	CLA3	$5.00 96 in stock
Door Column Left quantity	55	Door Column Left	CLA4_40224	$5.00 99 in stock
Fascia Panel Front Right quantity	56	Fascia Panel Front Right	FPA1	$5.00 97 in stock
Fascia Panel Front Left quantity	57	Fascia Panel Front Left	FPA2	$5.00 98 in stock
Fascia Panel Back Left quantity	58	Fascia Panel Back Left	FPA3	$5.00 99 in stock
Fascia Panel Back Right quantity	59	Fascia Panel Back Right	FPA4	$5.00 98 in stock
Center Column quantity	60	Center Column	VFA14	$5.00 100 in stock
Roof Panel quantity	61	Roof Panel	RPA1	$15.00 60 in stock
Roof Panel quantity	62	Roof Panel	RPA2	$15.00 47 in stock
Roof Panel quantity	63	Roof Panel	RPA3	$15.00 48 in stock
Roof Panel quantity	64	Roof Panel	RPA4	$15.00 63 in stock
Roof Panel quantity	65	Roof Panel	RPA5	$15.00 54 in stock
Roof Panel quantity	66	Roof Panel	RPA6	$15.00 52 in stock
Side Panel quantity	67	Side Panel	WPA1	$15.00 53 in stock
Window Panel quantity	68	Window Panel	WPA2	$15.00 86 in stock
Door Left quantity	69	Door Left	DL_40224	$35.00 99 in stock
Door Right quantity	70	Door Right	DR_40224	$35.00 99 in stock
6mm Wall Plug (22pcs) quantity	71	6mm Wall Plug (22pcs)	F1	$1.00 85 in stock
Pin Long (2pcs includes PPGL Roof Plugs Long) quantity	72	Pin Long (2pcs includes PPGL Roof Plugs Long)	PINL	$1.00 77 in stock
Roof Plug Long (2 pcs includes PINL Long Pins) quantity	73	Roof Plug Long (2 pcs includes PINL Long Pins)	PPGL	$1.00 461 in stock
Pin Short (15pcs includes PPG Roof Plug Short) quantity	74	Pin Short (15pcs includes PPG Roof Plug Short)	PIN	$3.00 322 in stock
Roof Plug Short (15pcs includes PIN Short Pins) quantity	75	Roof Plug Short (15pcs includes PIN Short Pins)	PPG	$3.00 279 in stock
Screw Pack Long (30pcs) quantity	76	Screw Pack Long (30pcs)	S2	$2.00 53 in stock
Screw Pack Small (8pcs) quantity	77	Screw Pack Small (8pcs)	S7	$2.00 47 in stock
Screw Pack (Includes 20 pcs) quantity	78	Screw Pack (Includes 20 pcs)	SBC1	$2.00 90 in stock
Screw Pack (168pcs) quantity	79	Screw Pack (168pcs)	S1	$3.00 31 in stock

Add to cart

SKU: 40224 UPC: 638801402244 Category: Vinyl Premier
