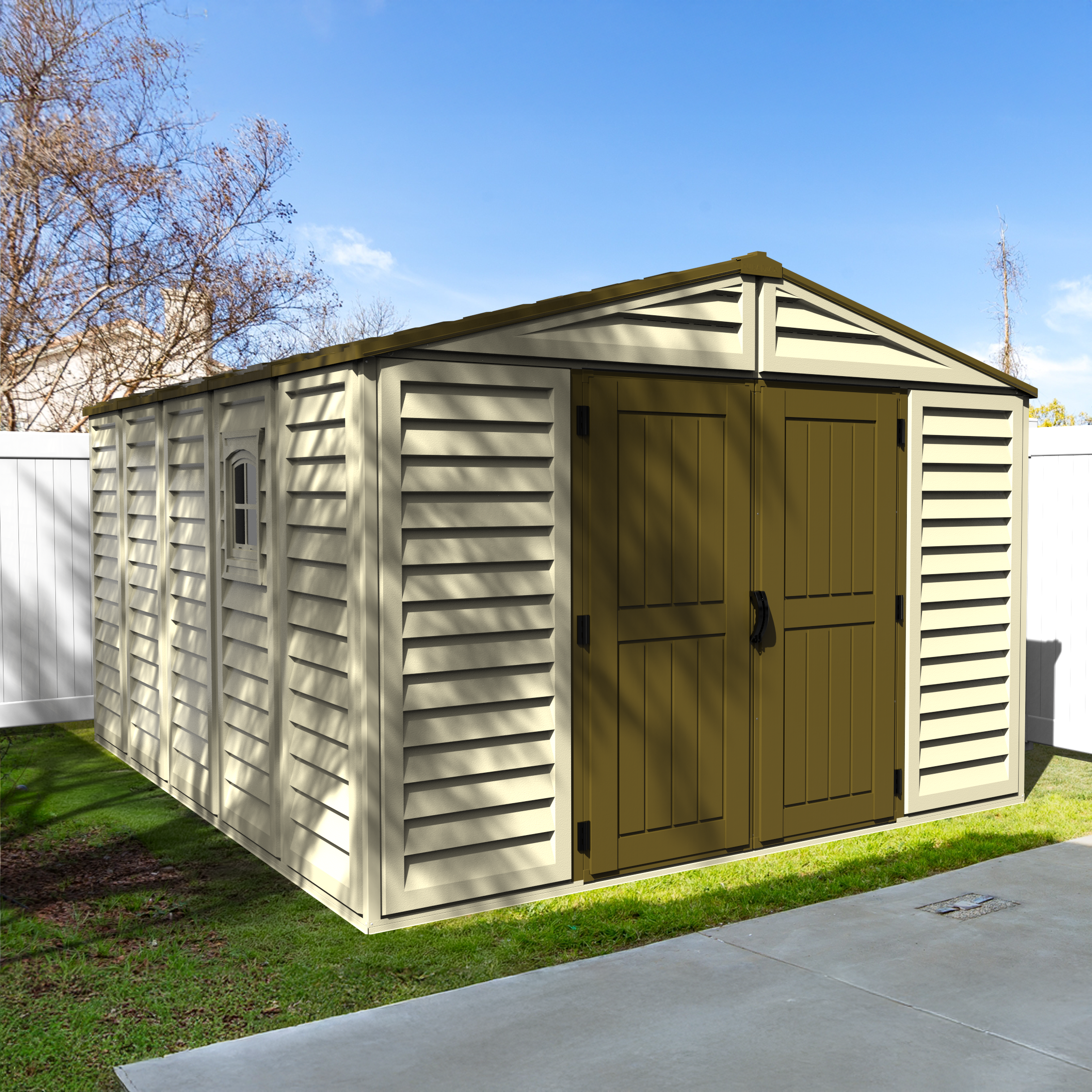

This 10.5 ft. x 13 ft. shed is the largest in our Plus Signature line that gives you the ultimate solution for all your storage needs. If you have the room this is the ideal storage for you. With large cubic feet, there is no better valued vinyl storage shed in the market place today. 2 tone colors beige/brown adds elegance to any outdoor setting. This tall walk-in shed features tall and wide double doors. The wall columns are reinforced with a solid metal structure that gives the shed strength as well as allows you to mount shelves or hang garden tools. These larger sheds can also be used as a hobby or activity room and comes in 3 popular shed sizes to choose from to fit your needs.

• Specs and Dimensions
• Diagrams
• 3D/AR

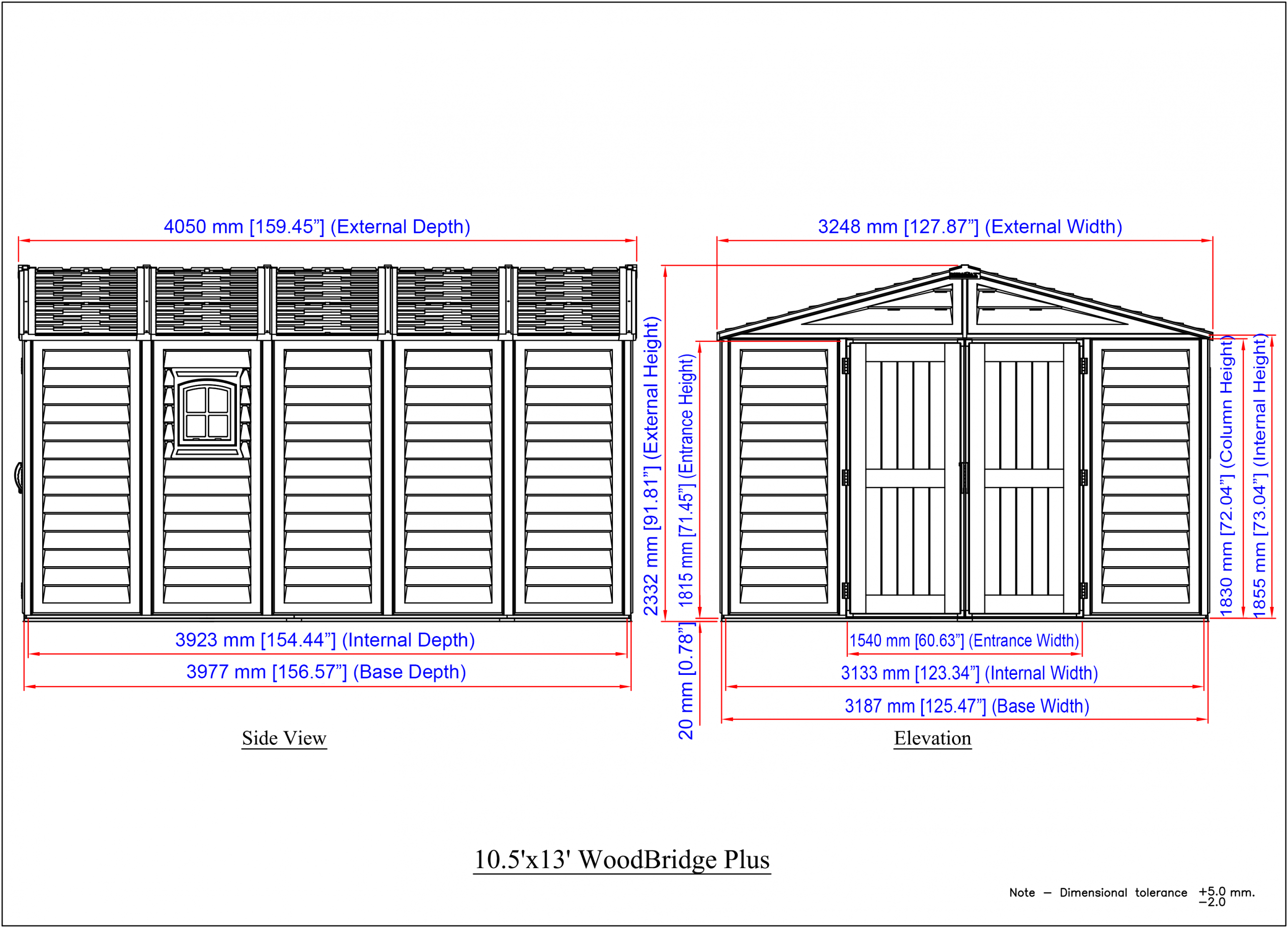

Specs and Dimensions



WoodBrigde Plus 10.5'x13' SPECIFICATIONS Color Exterior Dimensions inches Interior Dimensions inches Door Dimensions inches Approx. Box Weight lbs. Item / Model No. Product Description Base Length/ Depth Width Height Length/ Depth Width Height Cu. Ft. of Space Width Height 40234-1 10.5'x13' WoodBridge Plus Ivory 159.45 127.87 91.81 154.45 123.35 73.03 805.14 60.63 71.46 428



Schematics and Parts

Click to download

• installation
• parts re-order
• CUSTOMER SUPPORT

Installation Help

INSTALLATION MANUAL

INSTALLATION VIDEO

WoodBridge Plus 10.5×13

$1.00 – $35.00

There’s just no better valued vinyl storage shed in the market place today!

NO.	PART NAME	PART NO.	PRICE
Blind Plugs quantity	1	Blind Plugs	BP	$1.00 88 in stock
Center band plastic joint quantity	2	Center band plastic joint	CBC	$1.00 90 in stock
Roof Fascia Cap quantity	3	Roof Fascia Cap	EC	$1.00 74 in stock
End Plug Square quantity	4	End Plug Square	EPS	$1.00 85 in stock
Center bend corner fitting quantity	5	Center bend corner fitting	FCB	$1.00 80 in stock
Fitting for Top corner column quantity	6	Fitting for Top corner column	FCC	$1.00 35 in stock
Door Column Top Fitting Left quantity	7	Door Column Top Fitting Left	FDCL	$1.00 84 in stock
Door Column Top Fitting Right quantity	8	Door Column Top Fitting Right	FDCR	$1.00 80 in stock
Fitting for Top Center column quantity	9	Fitting for Top Center column	FMC	$1.00
Plastic Washer (Includes 28 pcs) quantity	10	Plastic Washer (Includes 28 pcs)	PW	$1.00 54 in stock
Roof Corner joint fitting quantity	11	Roof Corner joint fitting	RJ	$1.00 60 in stock
Middle Jointing Support quantity	12	Middle Jointing Support	VJA01	$1.00 76 in stock
Door Handle Left quantity	13	Door Handle Left	DH_L	$2.00 79 in stock
Door Handle Right quantity	14	Door Handle Right	DH_R	$2.00 78 in stock
Left Hinges quantity	15	Left Hinges	LH_40234	$2.00 100 in stock
Right Hinges quantity	16	Right Hinges	RH_40234	$2.00 100 in stock
Screw Pack (Includes 20 pcs) quantity	17	Screw Pack (Includes 20 pcs)	SBC1	$2.00 90 in stock
Bottom U Channel Front Right quantity	18	Bottom U Channel Front Right	VBA01	$2.00 96 in stock
Bottom U Channel Back quantity	19	Bottom U Channel Back	VBA04	$2.00 91 in stock
Bottom U Channel Back quantity	20	Bottom U Channel Back	VBA05	$2.00 90 in stock
Bottom U Channel Front Left quantity	21	Bottom U Channel Front Left	VBA06	$2.00 94 in stock
Center Band Extension Right quantity	22	Center Band Extension Right	VBA07	$2.00 99 in stock
Center Band Ext. Left quantity	23	Center Band Ext. Left	VBA08	$2.00 99 in stock
Center Band front quantity	24	Center Band front	VCA01	$2.00 93 in stock
Center Band Long quantity	25	Center Band Long	VCA03	$2.00 65 in stock
Center Band Small quantity	26	Center Band Small	VCA04	$2.00 100 in stock
Foundation steel quantity	27	Foundation steel	VFA01	$2.00 99 in stock
Foundation steel quantity	28	Foundation steel	VFA02	$2.00 99 in stock
Foundation steel quantity	29	Foundation steel	VFA06	$2.00 95 in stock
Foundation steel quantity	30	Foundation steel	VFA07	$2.00 100 in stock
Foundation steel quantity	31	Foundation steel	VFA08	$2.00 100 in stock
Foundation steel quantity	32	Foundation steel	VFA09	$2.00 100 in stock
Foundation steel quantity	33	Foundation steel	VFA10	$2.00 91 in stock
Foundation steel quantity	34	Foundation steel	VFA11	$2.00 98 in stock
Foundation steel quantity	35	Foundation steel	VFA12	$2.00 99 in stock
Foundation steel quantity	36	Foundation steel	VFA13	$2.00 100 in stock
Roof structure quantity	37	Roof structure	VRA01	$2.00 96 in stock
Roof structure quantity	38	Roof structure	VRA02	$2.00 98 in stock
Roof structure quantity	39	Roof structure	VRA03	$2.00 95 in stock
Roof structure quantity	40	Roof structure	VRA04	$2.00 96 in stock
Door Stopper quantity	41	Door Stopper	VRA05	$2.00 99 in stock
Roof structure quantity	42	Roof structure	VRA06	$2.00 93 in stock
Roof structure quantity	43	Roof structure	VRA07	$2.00 100 in stock
Roof structure quantity	44	Roof structure	VRA08	$2.00 92 in stock
Roof structure quantity	45	Roof structure	VRA09	$2.00 92 in stock
Roof structure quantity	46	Roof structure	VRA10	$2.00 95 in stock
Roof structure quantity	47	Roof structure	VRA11	$2.00 93 in stock
Roof structure quantity	48	Roof structure	VRA12	$2.00 91 in stock
Roof structure quantity	49	Roof structure	VRA14	$2.00 96 in stock
Roof structure quantity	50	Roof structure	VRA15	$2.00 96 in stock
Roof structure quantity	51	Roof structure	VRA16	$2.00 85 in stock
Roof structure quantity	52	Roof structure	VRA17	$2.00 87 in stock
Roof structure quantity	53	Roof structure	VRA18	$2.00 77 in stock
Roof structure quantity	54	Roof structure	VRA19	$2.00 96 in stock
Roof structure quantity	55	Roof structure	VRA21	$2.00 99 in stock
Roof structure quantity	56	Roof structure	VRA22	$2.00 97 in stock
Roof structure quantity	57	Roof structure	VRA25	$2.00 98 in stock
Roof structure quantity	58	Roof structure	VRA26	$2.00 96 in stock
Door Column Left quantity	59	Door Column Left	CLA1	$5.00 99 in stock
Corner Column quantity	60	Corner Column	CLA2	$5.00 99 in stock
Center Column quantity	61	Center Column	CLA3	$5.00 96 in stock
Door column right quantity	62	Door column right	CLA4	$5.00 96 in stock
Fascia Panel Front Right quantity	63	Fascia Panel Front Right	FPA1	$5.00 97 in stock
Fascia Panel Front Left quantity	64	Fascia Panel Front Left	FPA2	$5.00 98 in stock
Fascia Panel Back Left quantity	65	Fascia Panel Back Left	FPA3	$5.00 99 in stock
Fascia Panel Back Right quantity	66	Fascia Panel Back Right	FPA4	$5.00 98 in stock
Center Column quantity	67	Center Column	VFA14	$5.00 100 in stock
Roof Panel quantity	68	Roof Panel	RPA1	$15.00 60 in stock
Roof Panel quantity	69	Roof Panel	RPA2	$15.00 47 in stock
Roof Panel quantity	70	Roof Panel	RPA3	$15.00 48 in stock
Roof Panel quantity	71	Roof Panel	RPA4	$15.00 63 in stock
Roof Panel quantity	72	Roof Panel	RPA5	$15.00 54 in stock
Roof Panel quantity	73	Roof Panel	RPA6	$15.00 52 in stock
Side Panel quantity	74	Side Panel	WPA1	$15.00 53 in stock
Window Panel quantity	75	Window Panel	WPA2	$15.00 86 in stock
Door Left quantity	76	Door Left	DL_40234	$35.00 97 in stock
Door Right quantity	77	Door Right	DR_40234	$35.00 98 in stock
6mm Wall Plug (22pcs) quantity	78	6mm Wall Plug (22pcs)	F1	$1.00 85 in stock
Pin Long (2pcs includes PPGL Roof Plugs Long) quantity	79	Pin Long (2pcs includes PPGL Roof Plugs Long)	PINL	$1.00 77 in stock
Roof Plug Long (2 pcs includes PINL Long Pins) quantity	80	Roof Plug Long (2 pcs includes PINL Long Pins)	PPGL	$1.00 461 in stock
Pin Short (15pcs includes PPG Roof Plug Short) quantity	81	Pin Short (15pcs includes PPG Roof Plug Short)	PIN	$3.00 322 in stock
Roof Plug Short (15pcs includes PIN Short Pins) quantity	82	Roof Plug Short (15pcs includes PIN Short Pins)	PPG	$3.00 279 in stock
Screw Pack Long (30pcs) quantity	83	Screw Pack Long (30pcs)	S2	$2.00 53 in stock
Screw Pack Small (8pcs) quantity	84	Screw Pack Small (8pcs)	S7	$2.00 47 in stock
Screw Pack (168pcs) quantity	85	Screw Pack (168pcs)	S1	$3.00 31 in stock

Add to cart

SKU: 40234 Category: Vinyl Premier
